RUN CONTINUOUSLY WITH THE BURRO DOCKING STATION

TURN BURRO INTO A PERPETUAL WORKING MACHINE

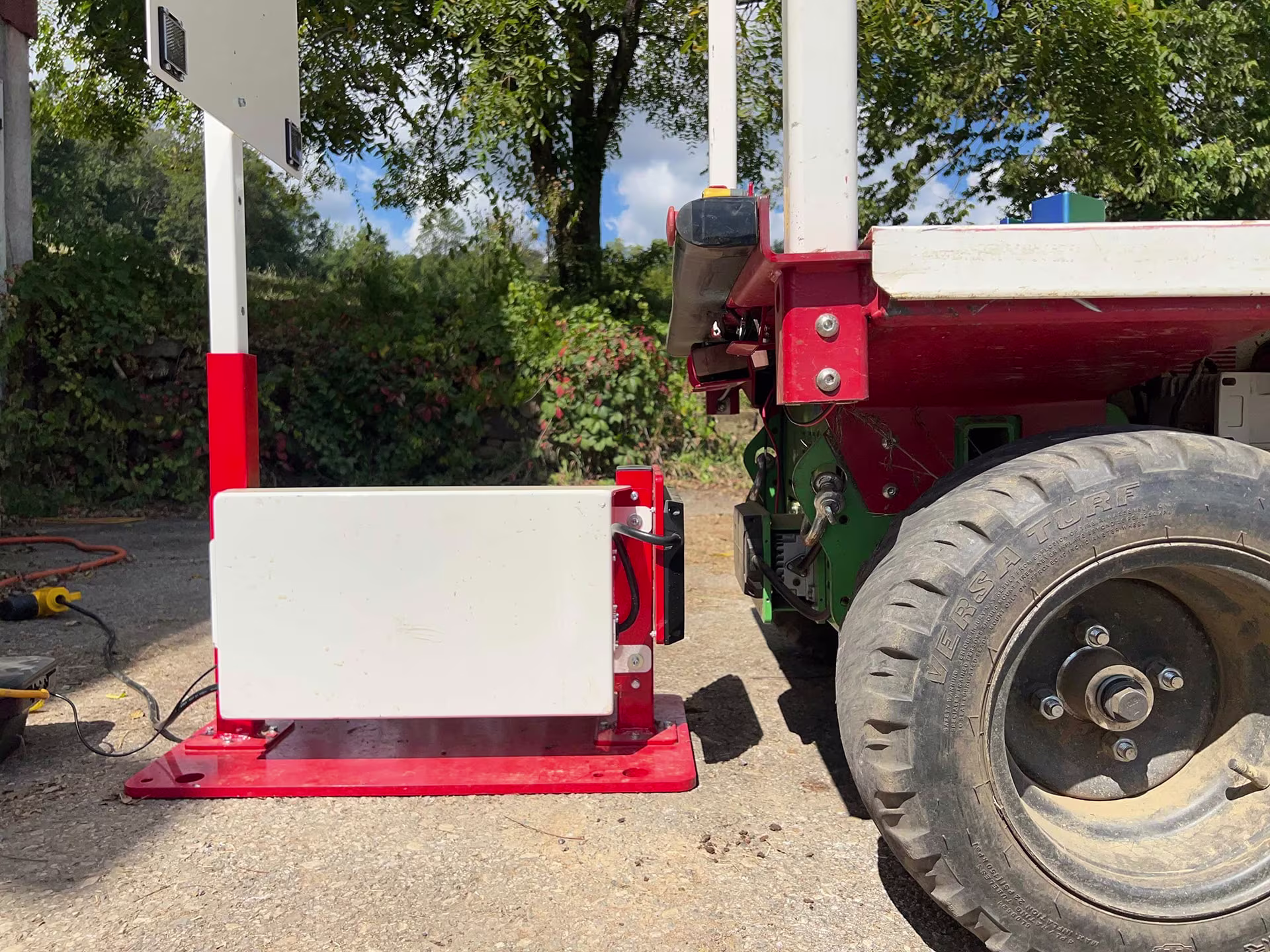

The Burro Docking Station revolutionizes the way you use your Burros and enables a full autonomous experience. The dock automates the charge cycle for your Burro Grande and Burro Verde robots wirelessly, reliably, and without human intervention. As your fleet returns to its assigned dock, it aligns itself, charges, and returns to work so you can focus on high-value tasks in your nursery, greenhouse, or farm.

Product Sheet

Testing Video

Key Features

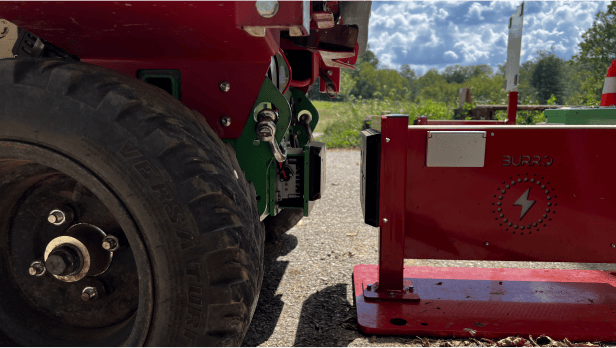

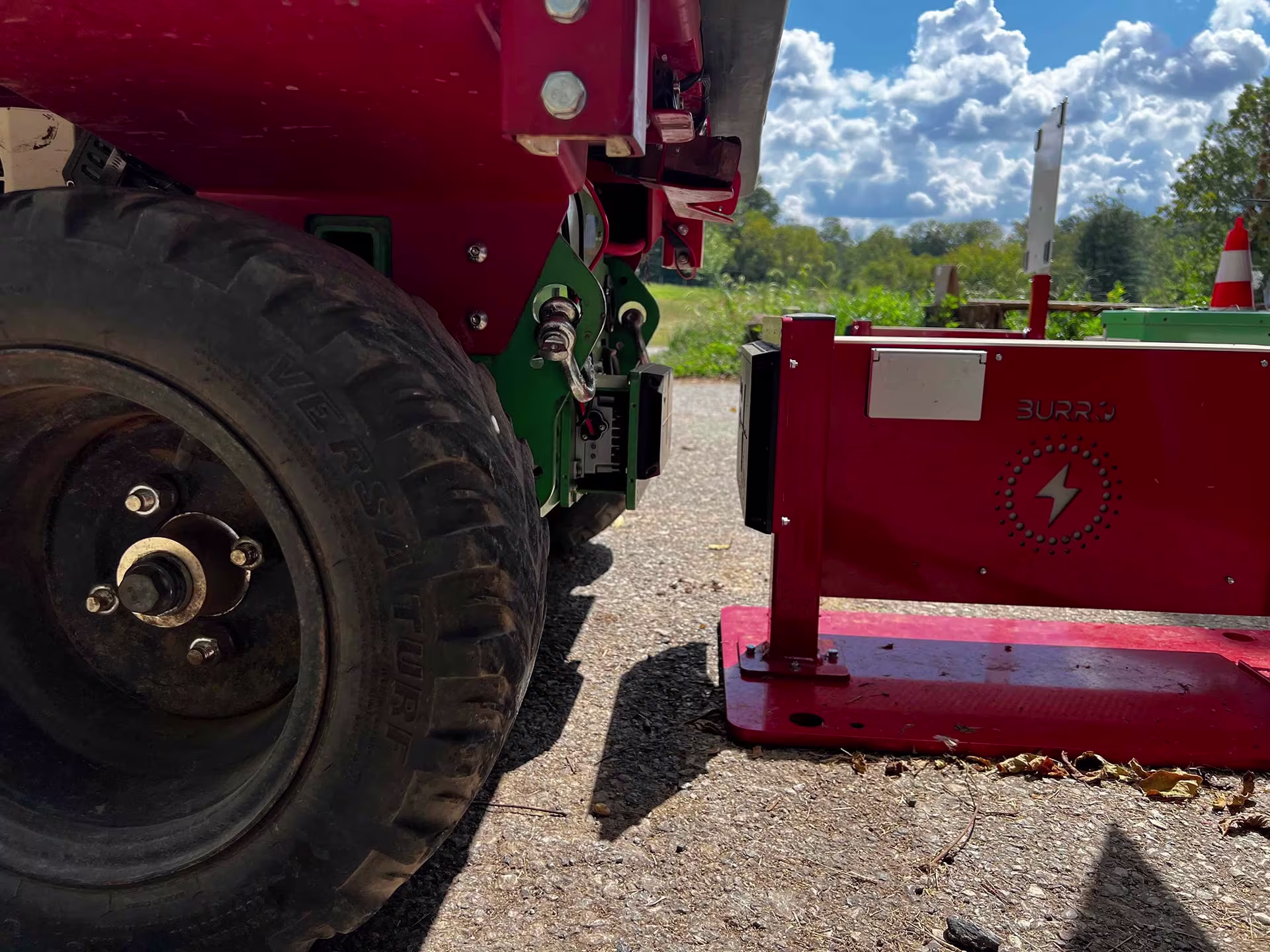

Fully Wireless

Wired docks are prone to failures due to wear and tear. Burro’s wireless dock is designed for reliability and years of continuous docking cycles in some of the harshest environments.

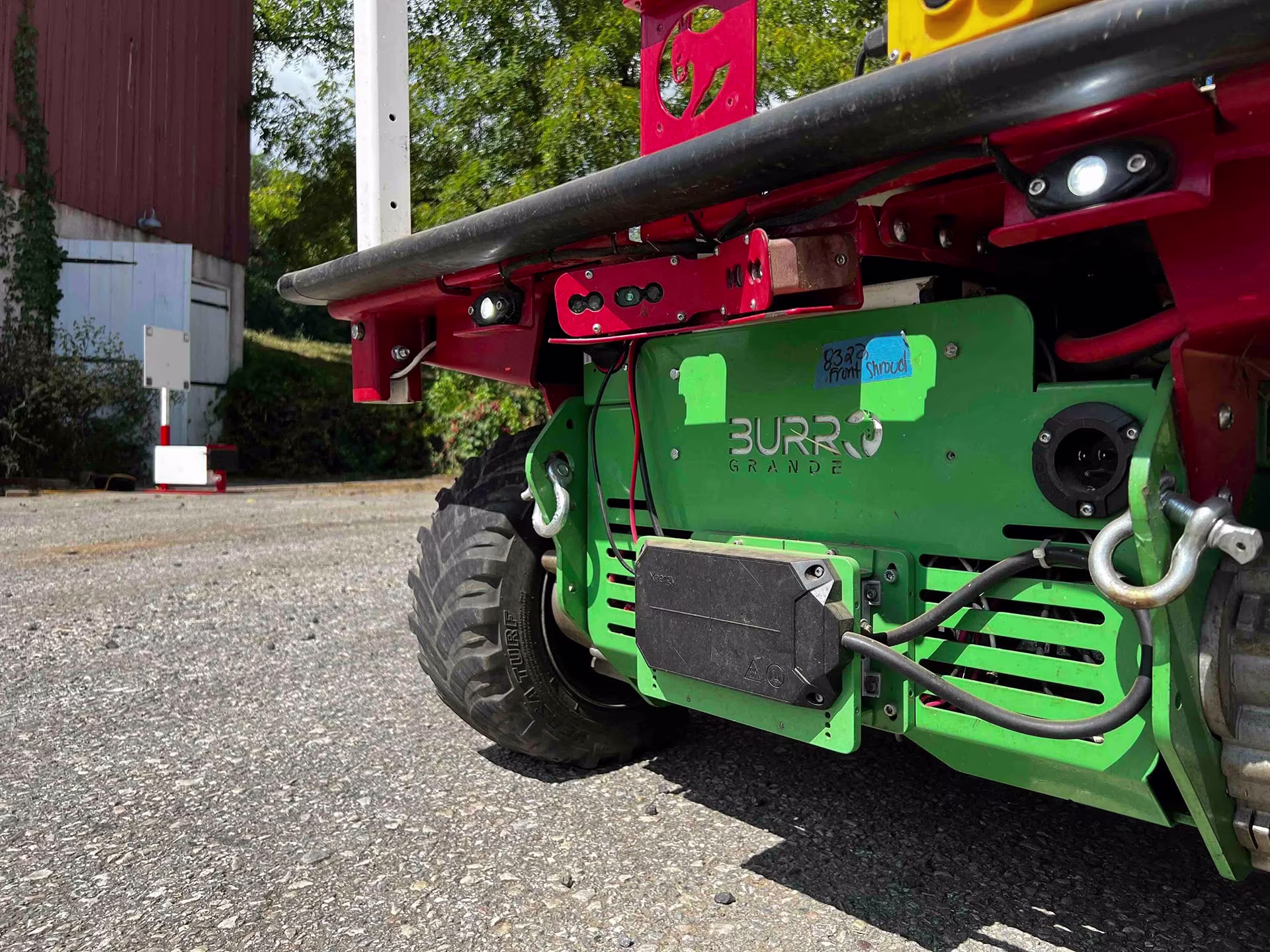

Inductive power transfer up to 1.5 kW
No exposed connectors or cables to corrode or fail

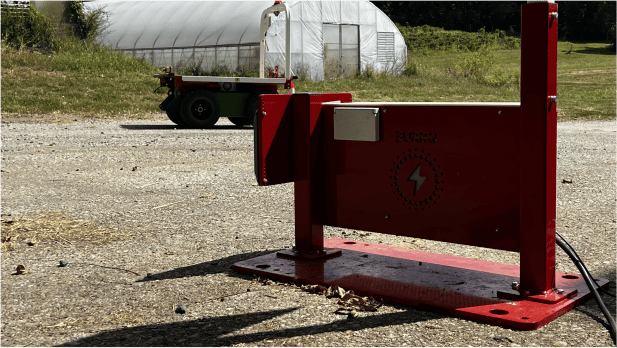

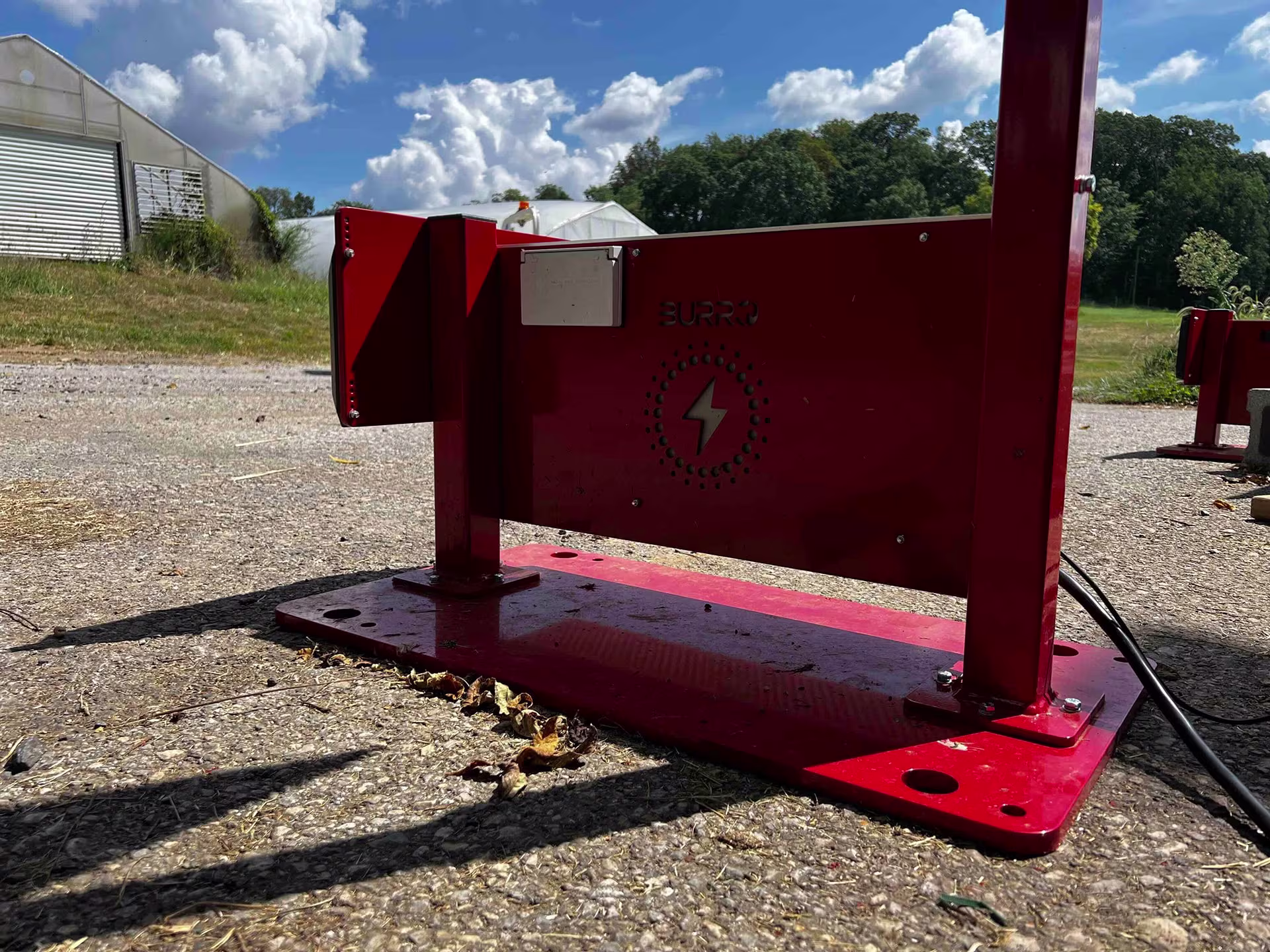

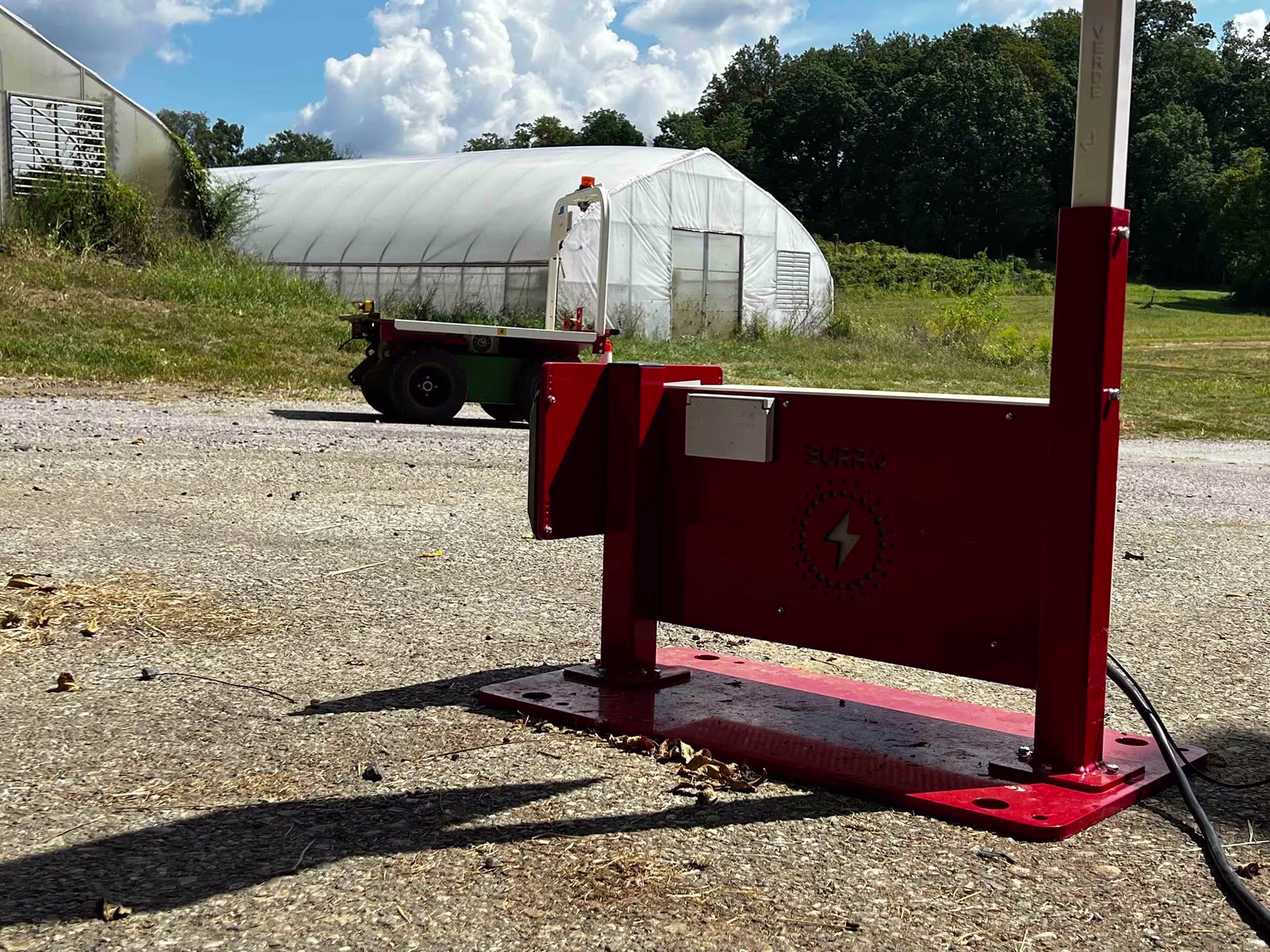

Outdoor Operation

The Burro Docking Station is designed to work in some of the harshest environments. It is weather-resistant, robust, and can operate in all weather conditions (including but not limited to rain, dust, and mud).

Ruggedized base stands up to UV, temperature swings, and chemical exposure

24/7 Operation

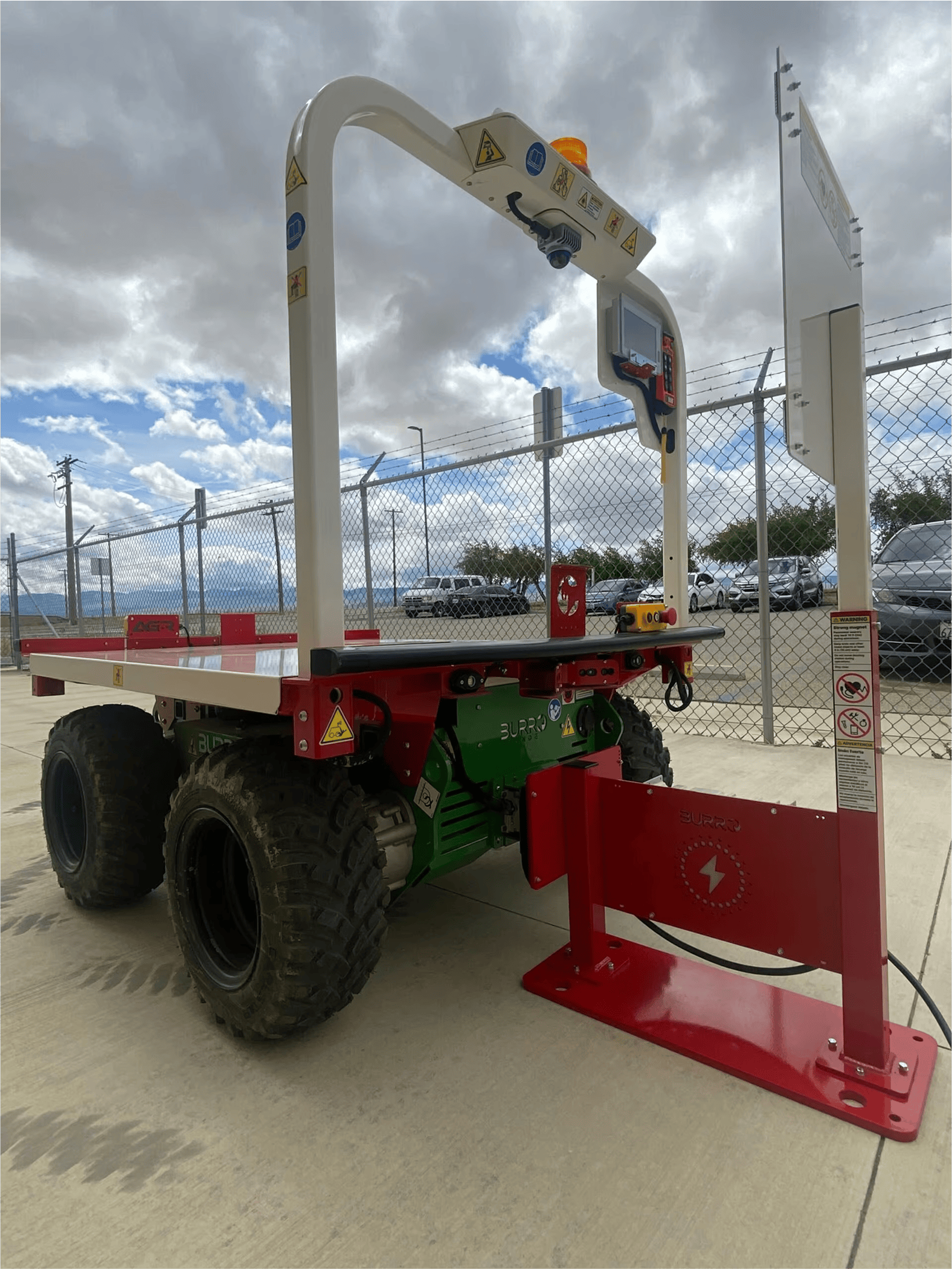

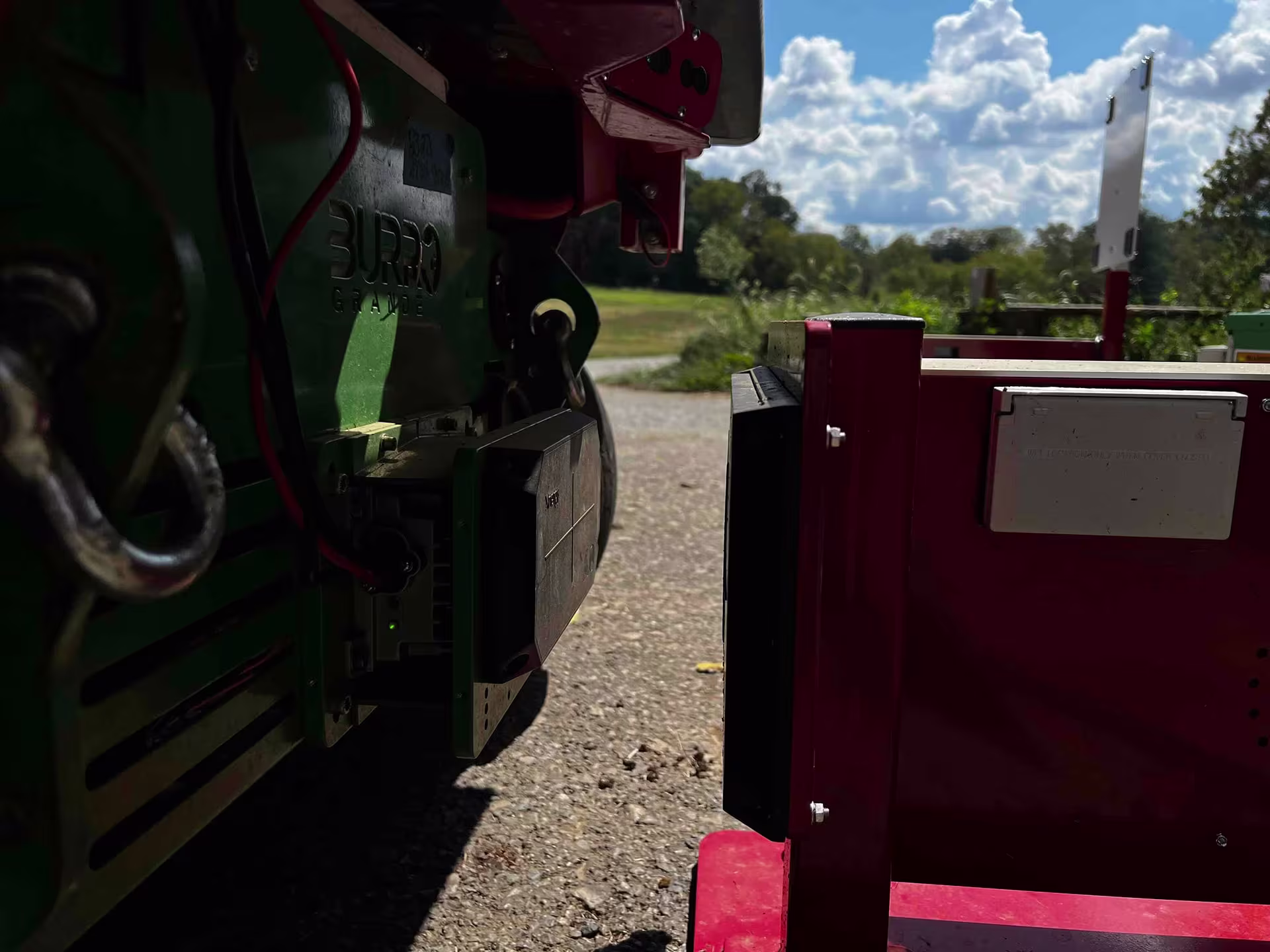

Robots align to the Burro Docking Station using our proprietary LiDAR alignment technology, which means you can operate day and night with the same level of accuracy every time.

Unit Compatibility

The Burro Docking Station is compatible with all existing Burro Grande and Burro Verde units, ensuring that users can leverage the full benefits of the docking station.

Hands-Free Operation

Conveniently eliminate the need for nightly plug-in routines, as well as help to reduce your labor costs.

Maximized Uptime

Perform continuous operations like mowing, spraying, and scouting without human intervention.

Built for Outdoors

Reliable performance across diverse weather conditions, including but not limited to rain, dust, and mud.

Seamless Integration

Works out of the box with minimal setup; compatible with all Burro Grande/Burro Verde units.

Specifications

Specification	Details
Charging Power	1.5kW (1500w)
Compatible platforms	Burro Grande, Burro Verde
Supported Wall Outlets	NEMA 6-50P @220VAC NEMA 5-15 @120VAC - Standard US Outlet * Supports other standard outlets in AUS & NZ
Input Voltage
Input Phase
Input Hz
Charge Times	Grande: 6 hours @220VAC 12 hours @120VAC Verde: 2 hours @220VAC 4 hours @120VAC
Localization	LiDAR-based

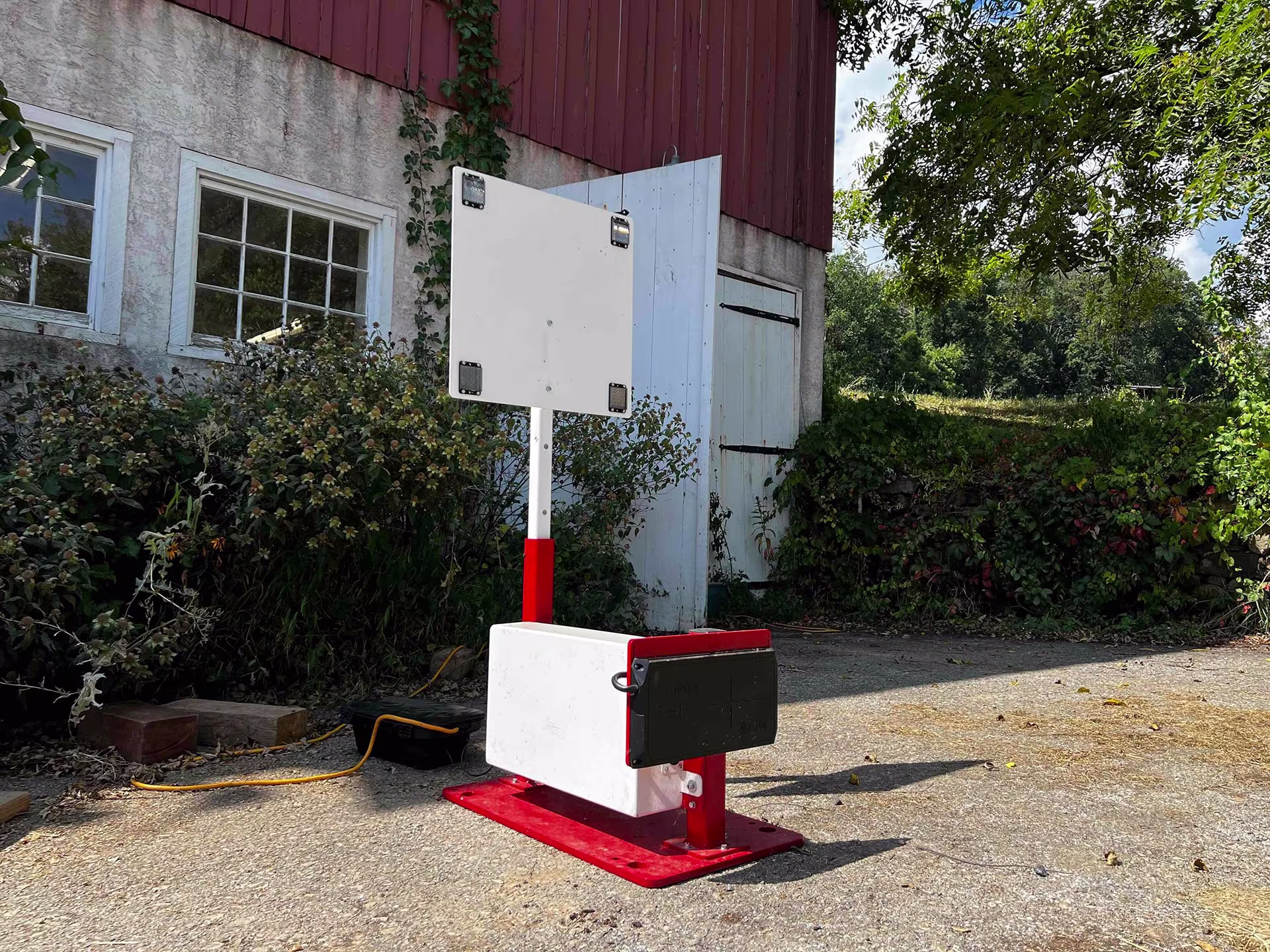

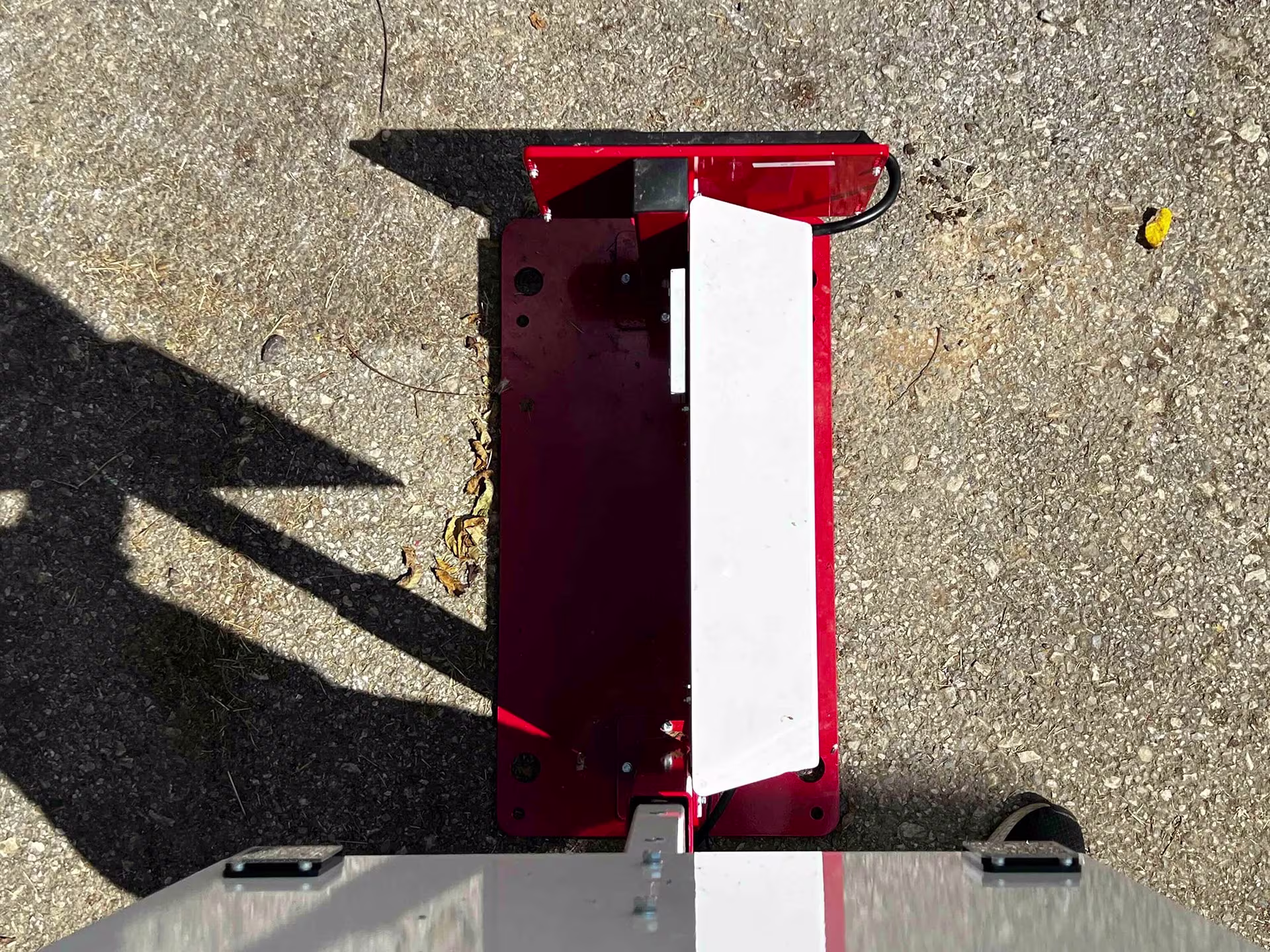

Dimension	Mounting plate	Incl. Reflector plate
Height	52.5 in (134cm)	52.5 in (134cm)
Width	15.6 in (40cm)	19.3 in (49cm)
Depth	27.75 in (70.5cm)	27.75 in (70.5cm)

Installation and Support

Compact footprint — dock mounts on a concrete pad or structural skid

Plug-and-play commissioning

Compatible with standard 120 or 220V circuits in the United States
